Fill Light IMX415 CMOS 4k 30fps USB Camera Module For Live Conference

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	SNS-DZ1036-V2.0
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

Fill Light IMX415 CMOS 4k 30fps USB Camera Module For Live Conference

imx415 cmos with fill light 4k 30fps usb camera module for live conference

imx415 usb camera module

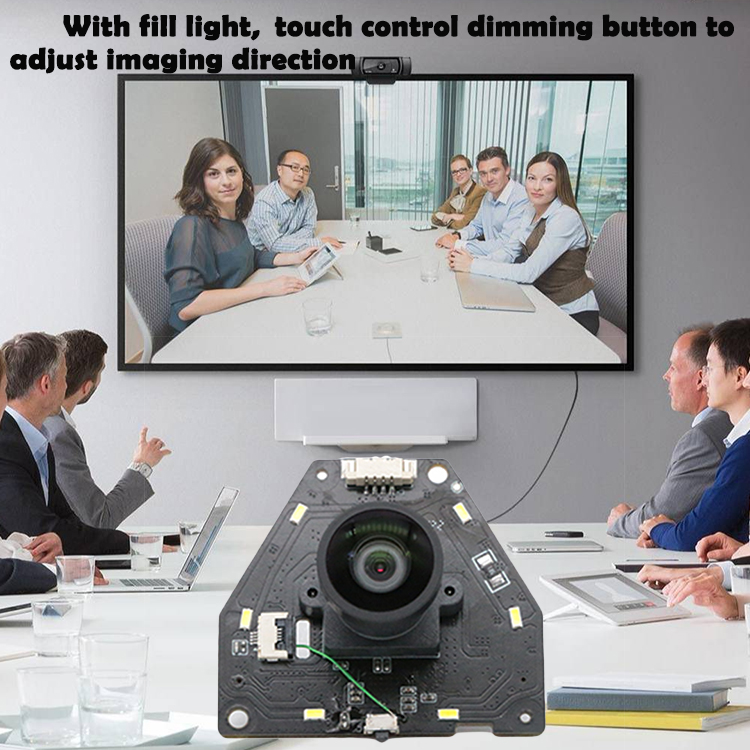

This is a compact 4k HD camera module with Sony imx415cmos. It has 6 fill lights, and the imaging direction can be adjusted by touching the fill light control dimming button. And it has excellent low-light performance, which can also take clearer images in low-light environments. Due to its small size, it can be used in a variety of scenarios and is in great demand in security camera applications. Of course, it can also be used for face recognition, security monitoring, video conferences, live conferences, webcasts and other scenarios. All have good results.

Specification

Model No	SNS-DZ1036-V2.0
Sensor	1/2.8’’ SONY IMX415 CMOS
Pixel	8 Mega Pixel
Most effective pixels	3840(H) x 2160(V)
Pixel Size	1.45µm x 1.45µm
Image area	3864um (H) x 2196um (V)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Fixed focus
Chroma	Color, RGB
Clock Frequency	6 to 72 MHz
Microphones	Built-in
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens construction: 5E+IR
	D FOV: 100 degree
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Operating Voltage	DC 5V
Operating Current	260mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 60°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
