AR0234 1080P Global Exposure autofocus USB Camera Module for High Speed Snapshots

1080p autofocus usb camera module

We introduce a USB2.0 camera module with AR0234CMOS sensor, which can autofocus and is designed for a variety of applications including machine vision cameras, augmented reality (AR)/virtual reality (VR)/mixed reality (MR) head-mounted displays , Autonomous Mobile Robots (AMRs) and barcode readers. It can run at up to 120 frames per second (fps), capturing both 1080p video and single-frame images. Use this 2-megapixel sensor with industry-leading shutter efficiency to minimize frame-to-frame distortion in high-speed scenes and reduce motion artifacts encountered with other image sensors for crisp images. The module's innovative pixel architecture provides the high dynamic range required to support a wide range of lighting conditions. Low noise and improved low-light response make it suitable for industrial applications such as autonomous mobile robots and machine vision cameras, and the extended operating temperature range enables deployment in challenging outdoor conditions. Other advanced features include: Programmable ROI with on-chip histogram, automatic exposure control and 5 x 5 statistics engine, fully integrated strobe illumination control, flexible row and column skip modes, and horizontal and vertical mirroring, windowing and pixels merge.

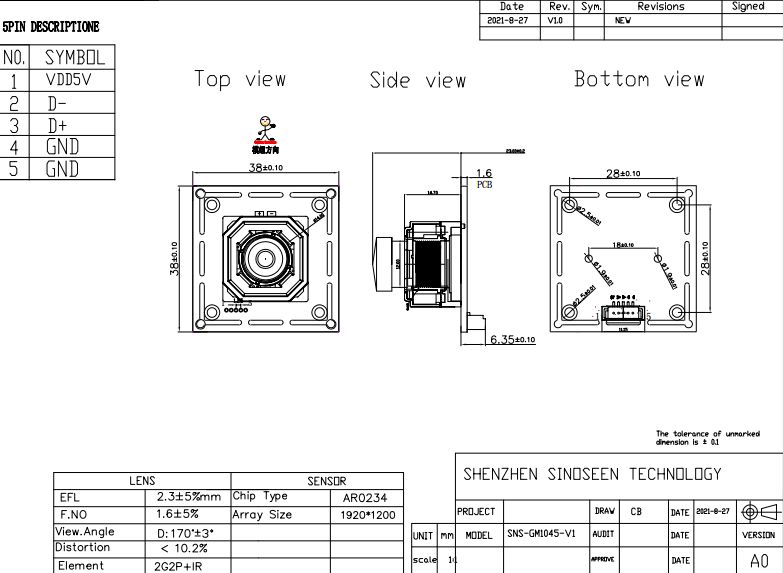

Specification
