8mp Sony Imx415 Sensor 20x Zoom Hdr USB 2.0 Camera Module Auto / Manual Focus

Ask Lasest Price
Brand Name :	Sinoseen
Model Number :	UX-ZOOM20-4KYS
Certification :	RoHS
Price :	negotiable
Payment Terms :	T/T
Supply Ability :	500000 pieces/month
Delivery Time :	2-3weeks

Add to Cart

Product Details
Company Profile

8mp Sony Imx415 Sensor 20x Zoom Hdr USB 2.0 Camera Module Auto / Manual Focus

8mp Sony imx415 sensor 20x zoom hdr USB2.0 camera module

camera module 20x zoom

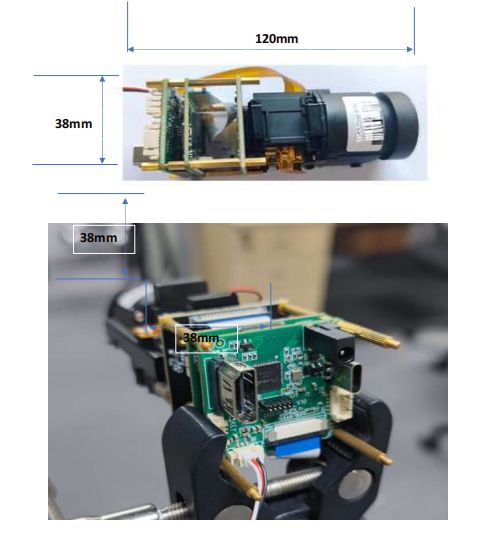

This is a USB camera module with Sony IMX415 8 million sensors. With a 20x optical zoom and a sensor size of 1/2.8, it is easier to obtain greater depth of field in small sizes. The focusing system can be automatic or manual, with a maximum resolution of 3840 * 2160 and a full resolution output of 30FPS. The high dynamic and high-definition features can perfectly restore the true appearance of the screen. We can adjust the size and shape according to your requirements; In addition, we have various FOVs from 40 ° to 200 °. IMX415USB camera module is usually widely used in high-definition photography, surveillance camera, FA camera, industrial camera, video surveillance, video conference integration, video teaching, Internet of Things, aerial camera drone, two-dimensional code recognition and other fields.

Specification:8mp hdr USB2.0 camera module

Model NoUX-ZOOM20-4KYS
Sensor1/2.8’’ SONY IMX415 CMOS
Pixel8 Mega Pixel
Most effective pixels3840(H) x 2160(V)
Pixel Size1.45µm x 1.45µm
Image area3864(H) x 2192(V)
Compression formatMJPEG / YUV2 (YUYV)
Resolution & Frame rateSee above
Shutter TypeElectronic rolling shutter
Focus typeAuto focus/ Manual focus
ChromaColor, RGB
Clock Frequency6 to 72 MHz
MicrophonesBuilt-in
Interface typeUSB2.0
Adjustable parameterBrightness/Contrast/Color saturation/Hue/Definition/Gamma/White
balance/Exposure
LensFocal length: 3.6mm
Lens construction: 5E+IR
D FOV: 100 degree
Thread Size: M12*P0.5
Audio frequencyOptional
Power supplyUSB BUS POWER
Operating VoltageDC 5V
Operating Current260mA
Main chipDSP/SENSOR/FLASH
Auto Exposure Control (AEC)Support
Auto White Balance (AEB)Support
Auto Gain Control (AGC)Support
DimensionCustomizable
Storage temperature-40˚C to 85 ˚C
Operating temperature-30˚C to 85 ˚C
USB cable lengthDefault
Support OSWinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
